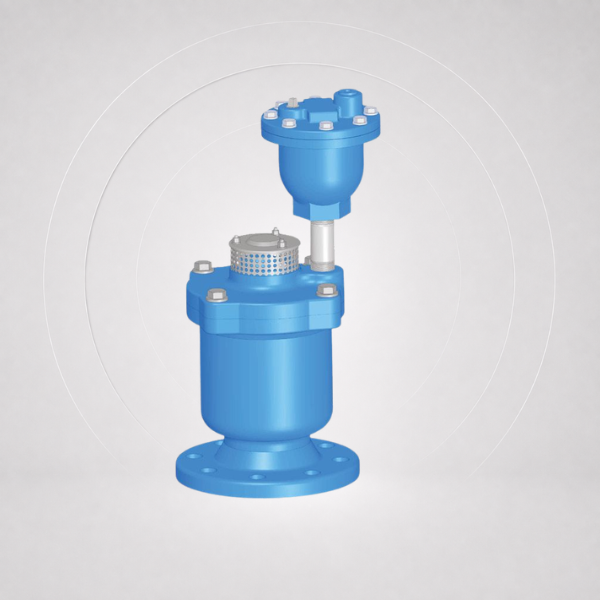

Double Orifice Air Relief Valve – VA910
Specification
✓
Automatically releases accumulated small volumes of air during normal pressurized system operation
Automatically releases accumulated small volumes of air during normal pressurized system operation
✓
Rapidly exhausts large volumes of air during pipeline filling and system start-up
Rapidly exhausts large volumes of air during pipeline filling and system start-up
✓
Allows large volumes of air to enter the pipeline during draining or negative pressure conditions
Allows large volumes of air to enter the pipeline during draining or negative pressure conditions
✓
Provides protection against pipeline collapse caused by vacuum conditions
Provides protection against pipeline collapse caused by vacuum conditions
✓
Maximum Working Pressure: 16 bar (232 psi)
Maximum Working Pressure: 16 bar (232 psi)
✓
Flanged connection to EN 1092-2, PN16
Flanged connection to EN 1092-2, PN16
✓
Large and Small Float Balls: Stainless Steel 304
Large and Small Float Balls: Stainless Steel 304
✓
Seat: EPDM/NBR
Seat: EPDM/NBR
✓
Internal and external Fusion Bonded Epoxy (FBE) coating
Internal and external Fusion Bonded Epoxy (FBE) coating
✓
Suitable for water supply, HVAC and water distribution systems
Suitable for water supply, HVAC and water distribution systems
