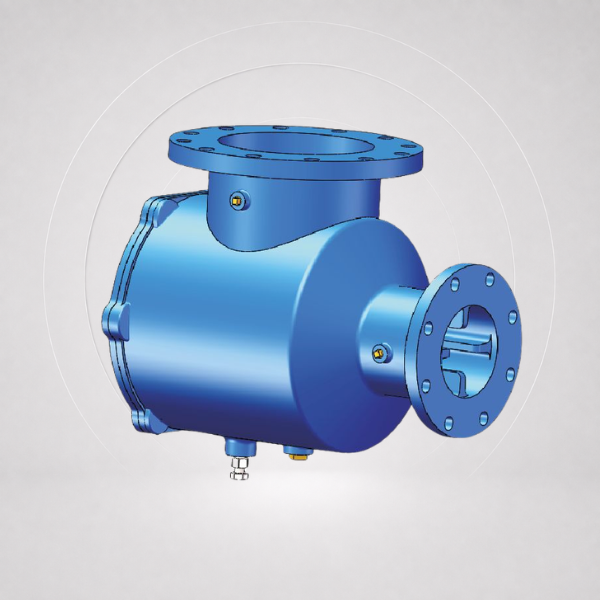

Suction Diffuser PN16 – VA7103
Specification
✓
Body and cover manufactured from Gray Cast Iron EN-GJL-250 in accordance with BS EN 1561
Body and cover manufactured from Gray Cast Iron EN-GJL-250 in accordance with BS EN 1561
✓
Stainless Steel 304 permanent strainer screen
Stainless Steel 304 permanent strainer screen
✓
Removable 20-mesh Stainless Steel 304 start-up screen for additional protection during system commissioning
Removable 20-mesh Stainless Steel 304 start-up screen for additional protection during system commissioning
✓
Integral flow-straightening arrangement provides a more uniform flow profile at the pump suction
Integral flow-straightening arrangement provides a more uniform flow profile at the pump suction
✓
Angled body design combines the functions of a reducing elbow, strainer and flow straightener in one compact unit
Angled body design combines the functions of a reducing elbow, strainer and flow straightener in one compact unit
✓
Flanged connections suitable for PN16 systems
Flanged connections suitable for PN16 systems
✓
Drain connection provided for cleaning and maintenance
Drain connection provided for cleaning and maintenance
✓
Internally and externally epoxy coated for corrosion protection
Internally and externally epoxy coated for corrosion protection
✓
Suitable for chilled water, heating water and HVAC closed-loop water systems
Suitable for chilled water, heating water and HVAC closed-loop water systems
