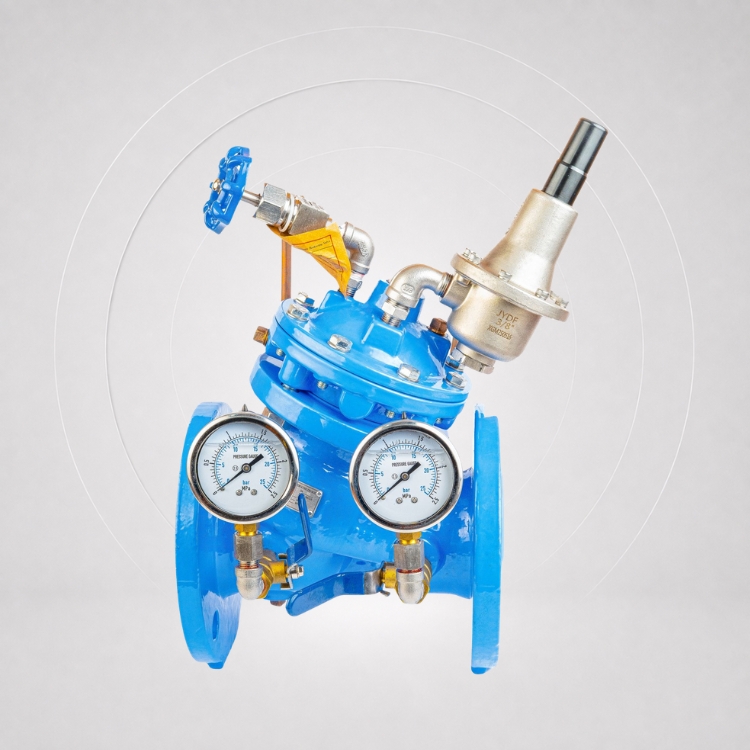

Pressure Reducing Valve – VA720
Specification
✓
Pilot operated diaphragm type pressure reducing valve
Pilot operated diaphragm type pressure reducing valve
✓
Designed to reduce high inlet pressure to a lower, stable downstream pressure
Designed to reduce high inlet pressure to a lower, stable downstream pressure
✓
Maintains constant downstream pressure despite variations in inlet pressure or flow demand
Maintains constant downstream pressure despite variations in inlet pressure or flow demand
✓
Nominal Pressure: PN10 / PN16 / PN25
Nominal Pressure: PN10 / PN16 / PN25
✓
Size Range: DN50 – DN600 (PN25 available DN50 – DN300)
Size Range: DN50 – DN600 (PN25 available DN50 – DN300)
✓
Flanged Connections: BS EN 1092-2
Flanged Connections: BS EN 1092-2
✓
Working Medium: Water
Working Medium: Water
✓
Operating Temperature Range: 0°C to 80°C
Operating Temperature Range: 0°C to 80°C
✓
Adjustable downstream pressure range: PN10: 2–8 bar, PN16: 2–12 bar, PN25: 2–16 bar
Adjustable downstream pressure range: PN10: 2–8 bar, PN16: 2–12 bar, PN25: 2–16 bar
✓
Fusion Bonded Epoxy (FBE) coating in accordance with BS EN 14901
Fusion Bonded Epoxy (FBE) coating in accordance with BS EN 14901
